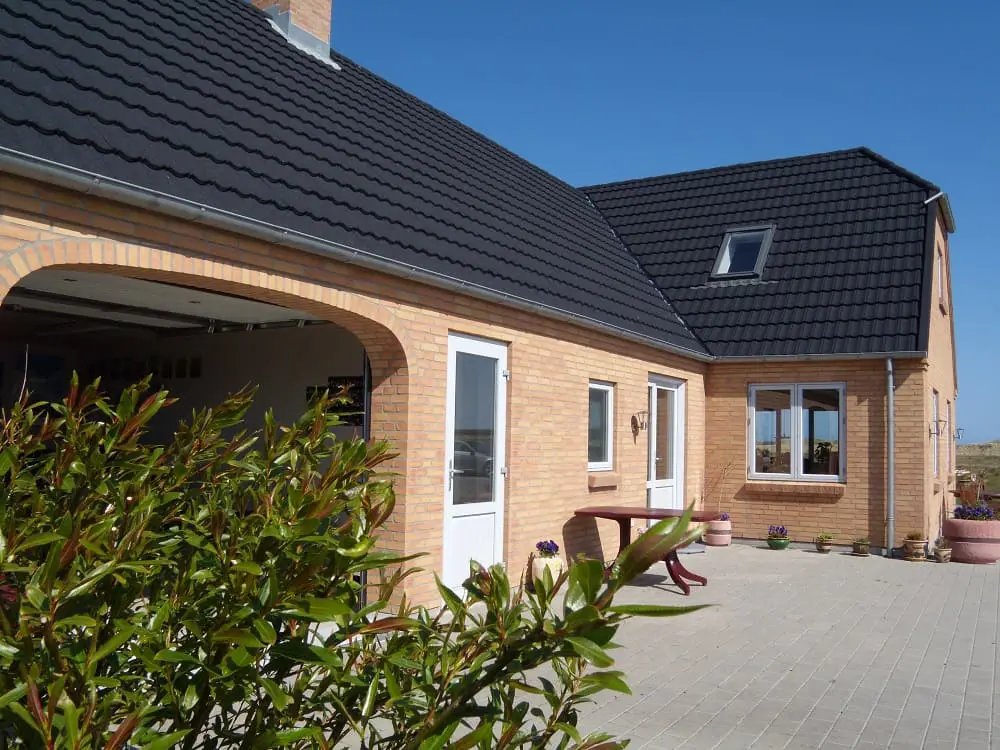

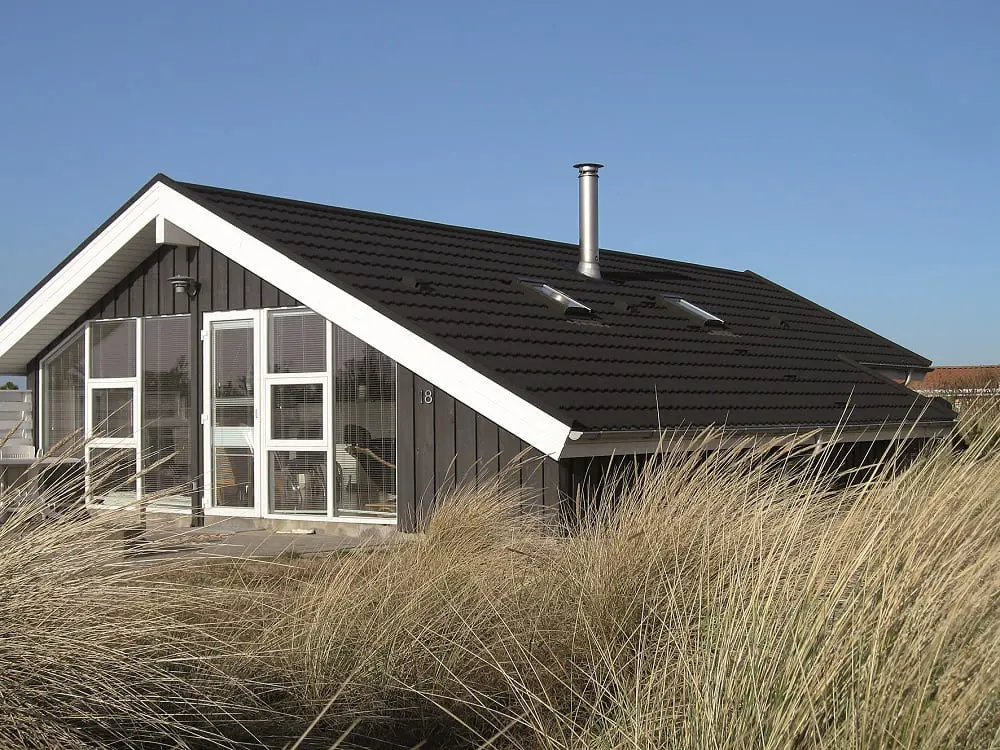

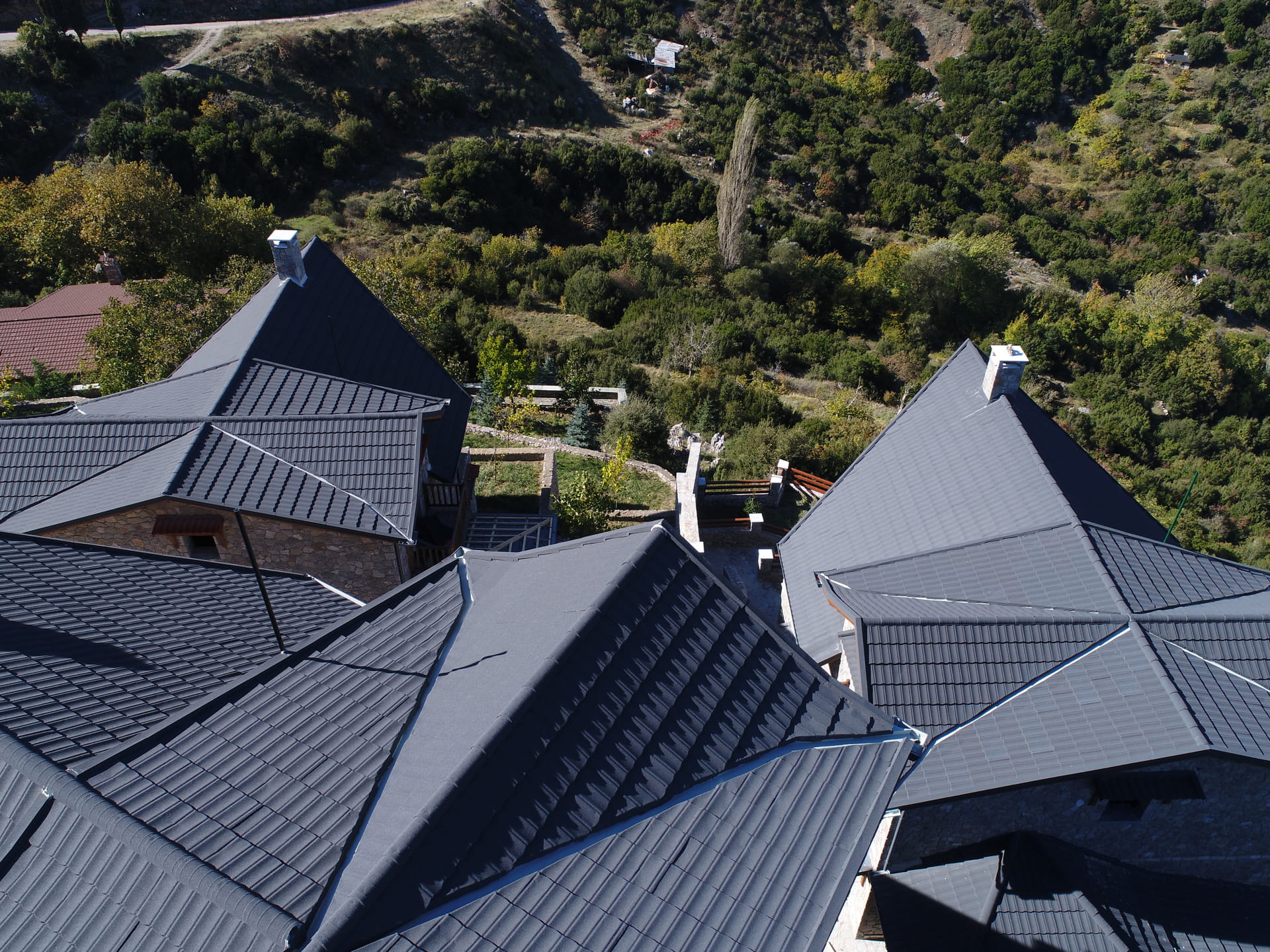

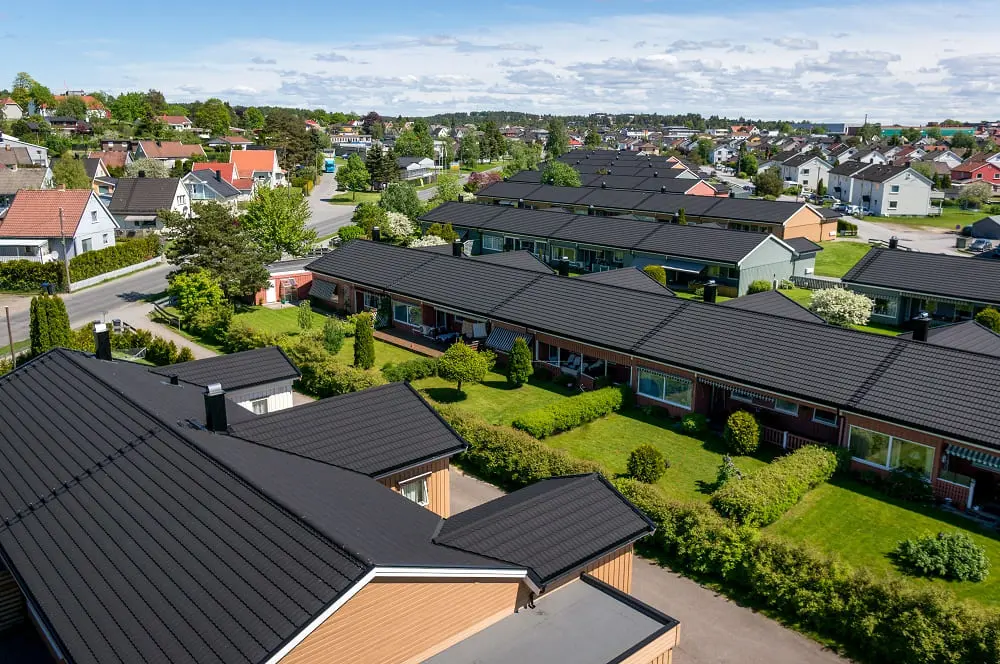

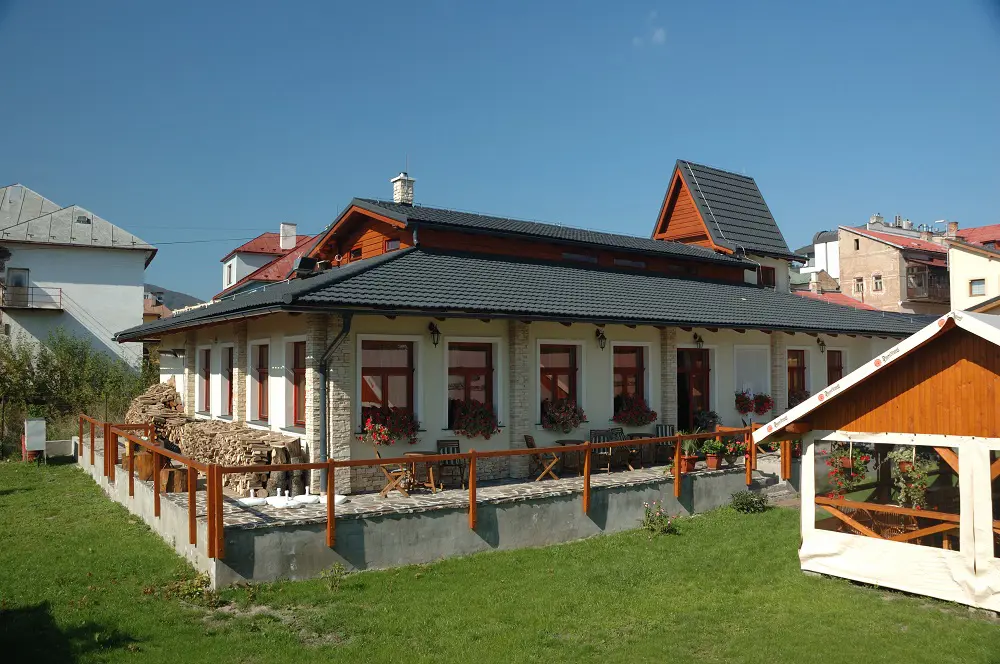

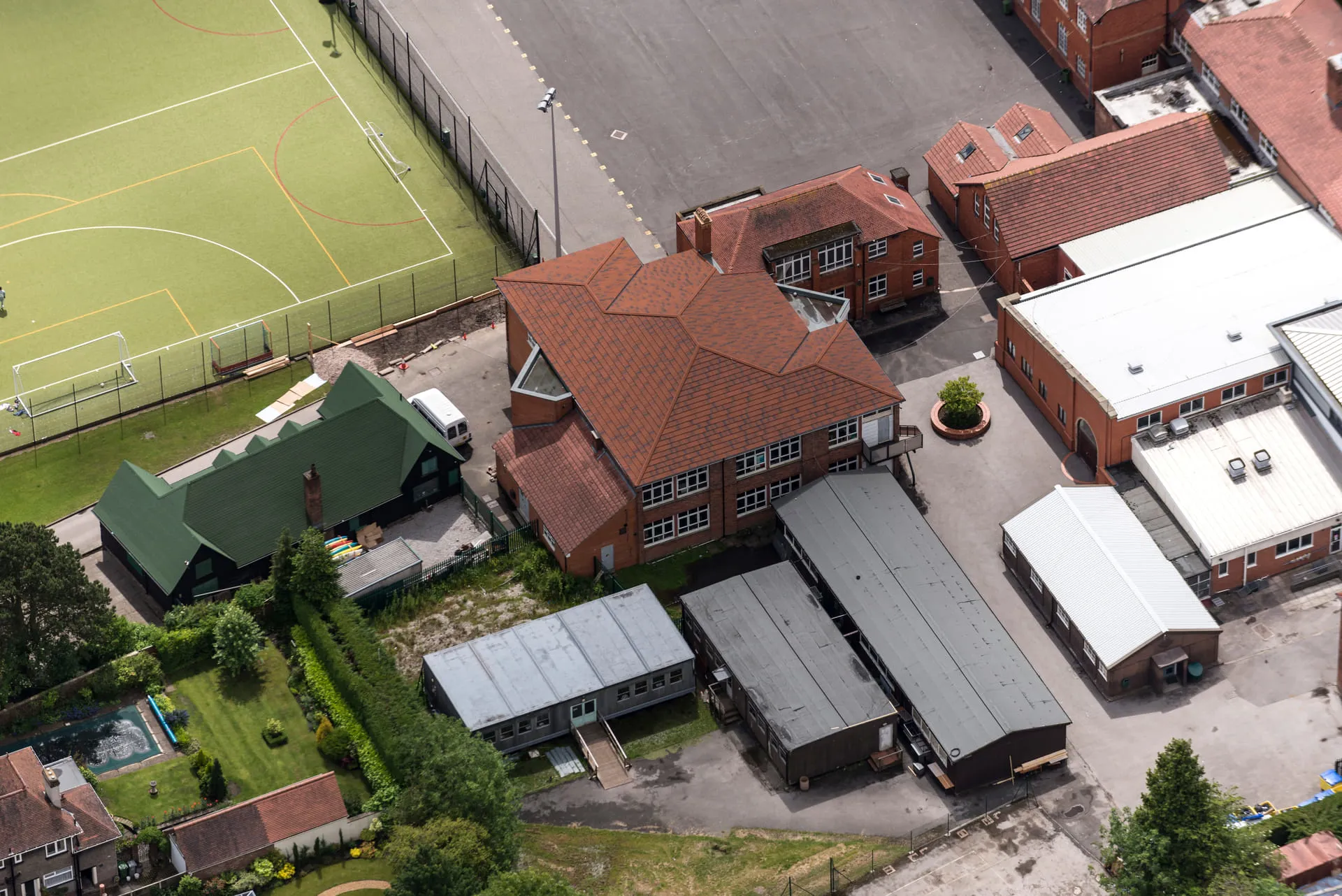

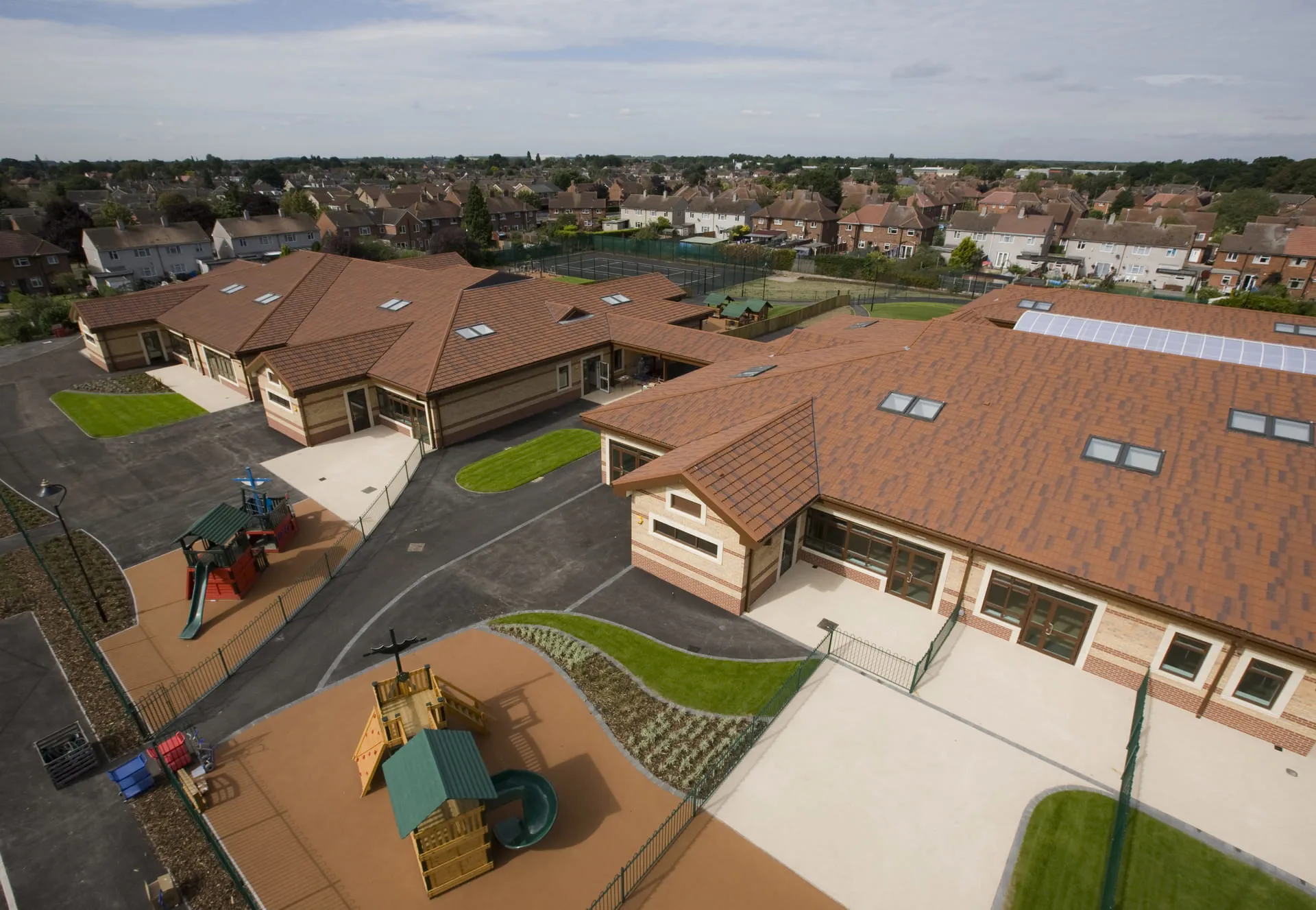

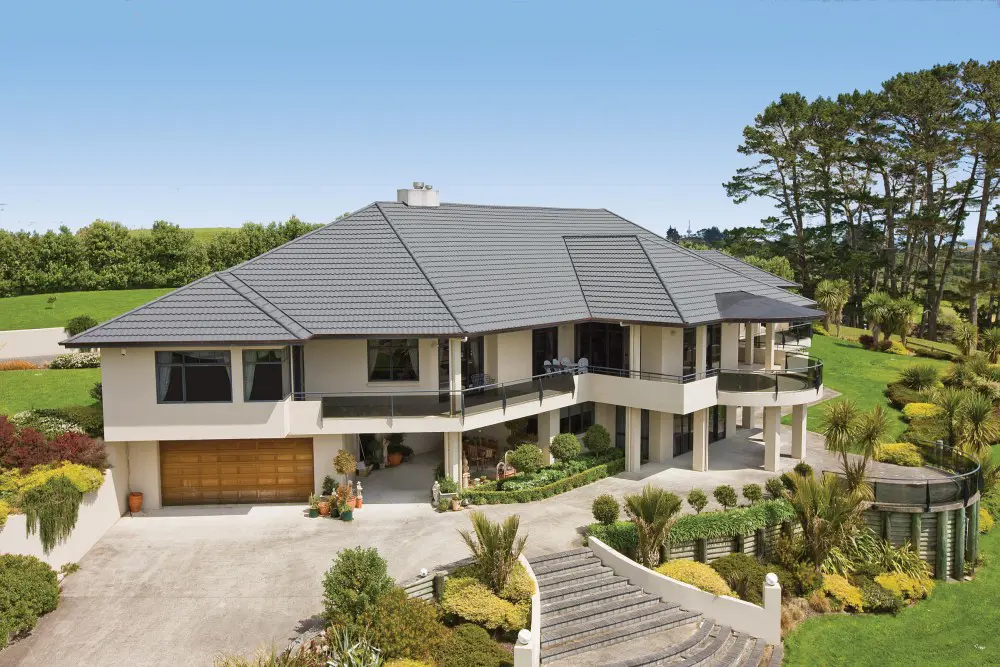

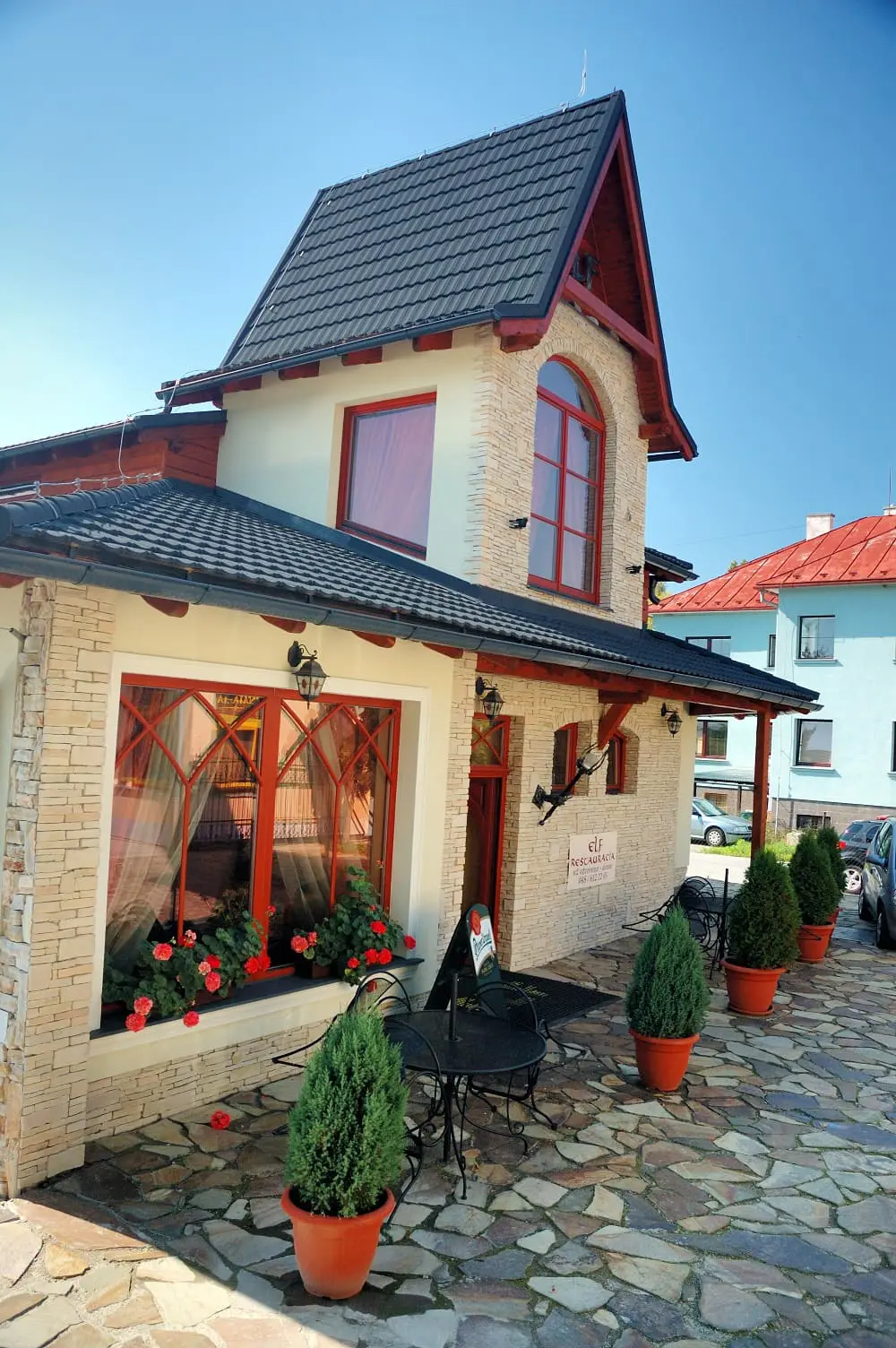

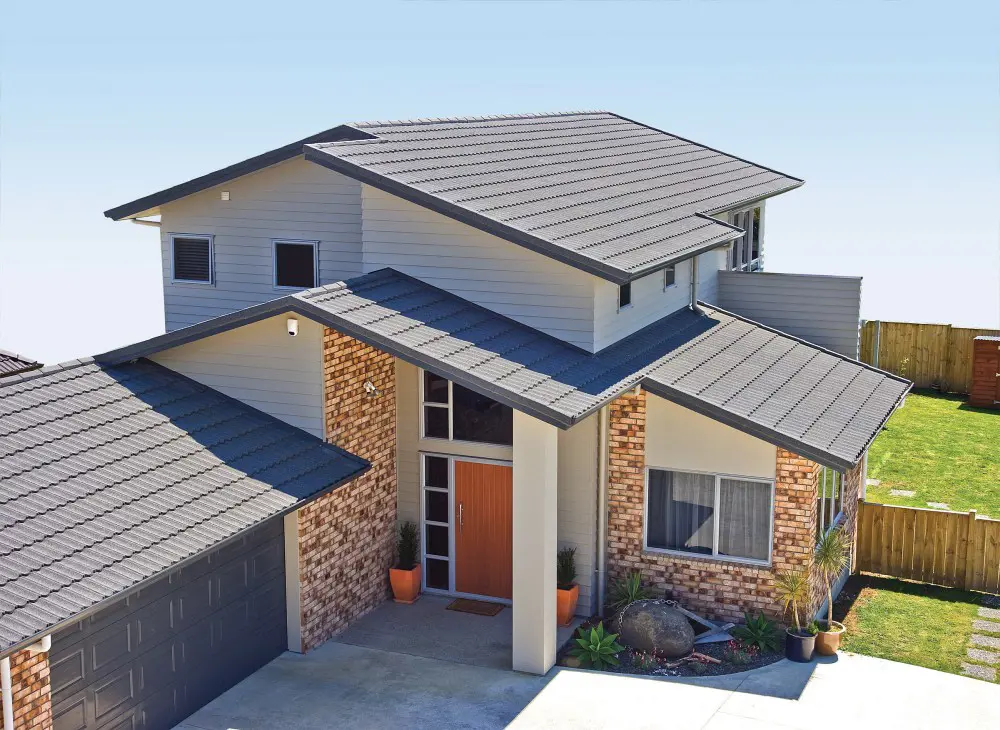

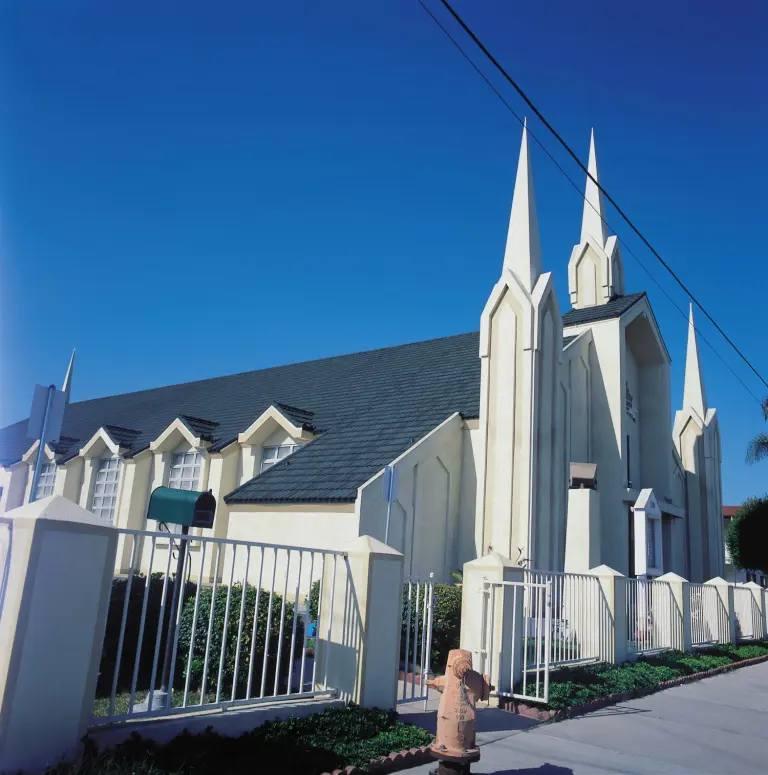

Bond

Smooth flowing curves for a timeless appeal

Textured

  • Brown
  • Antique Grey
  • Antique Red

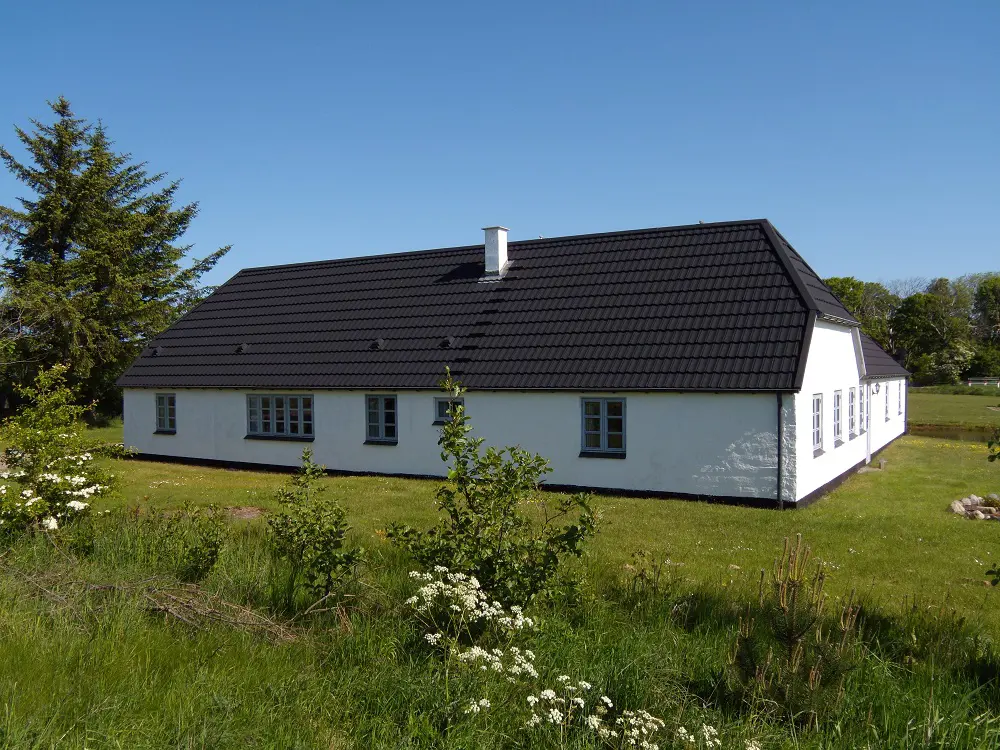

  • Coal Black
  • Charcoal
  • Coffee

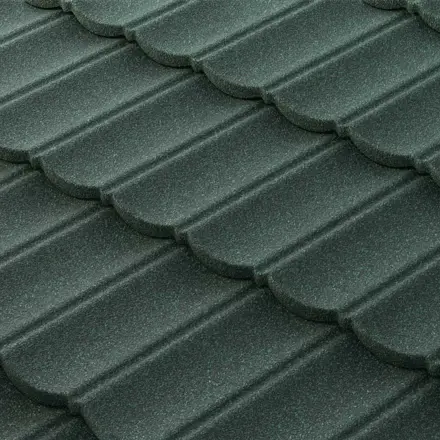

  • Greenstone
  • Ironbark
  • Red
  • Scarlet
  • Terracotta
  • Tuscany

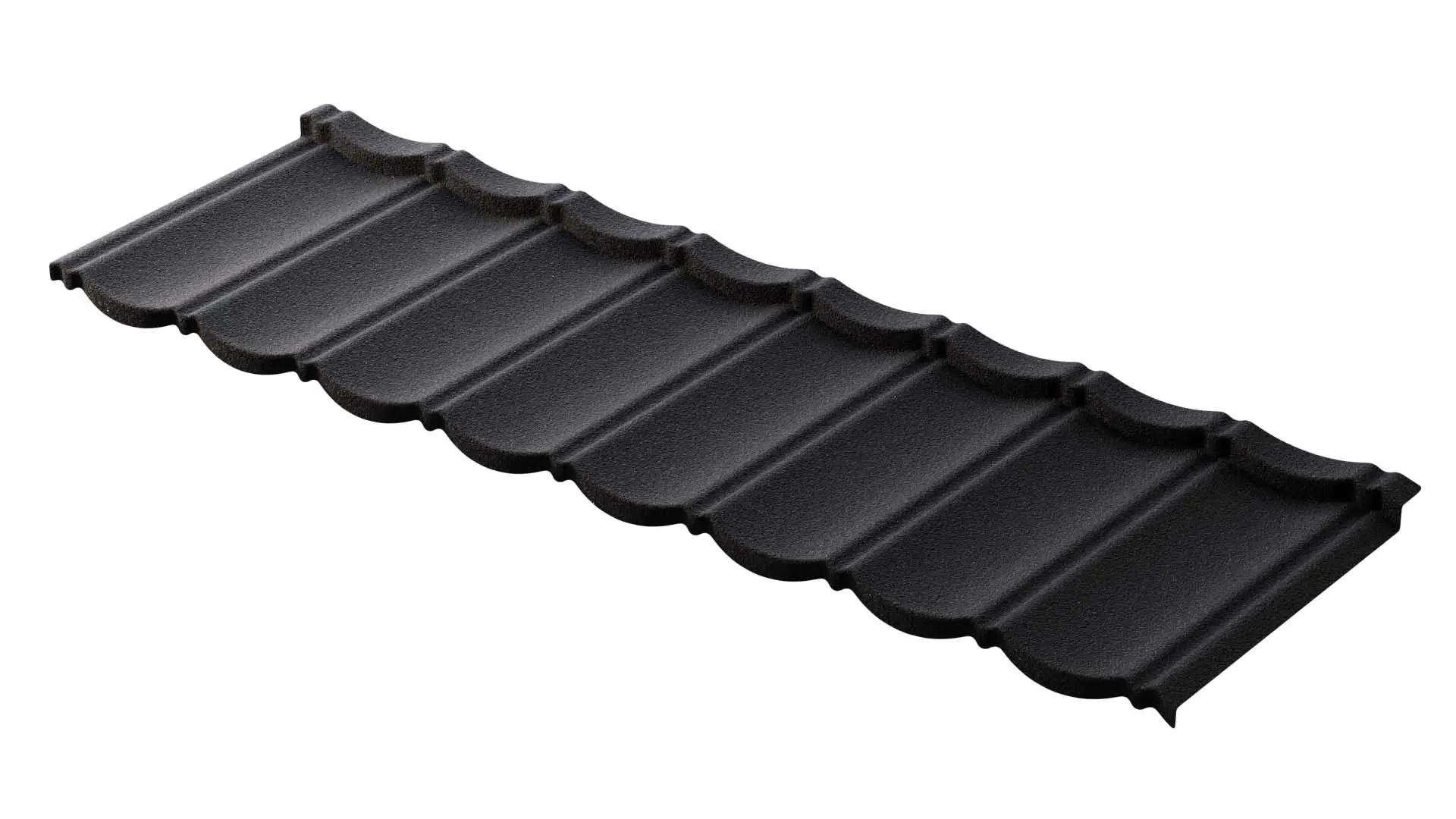

The Bond is manufactured from steel flat sheets with a high grade protective layer and is available in a wide selection of colours to enhance any exterior colour scheme.

Product specifications

Overall Length
1330 mm
Length of cover
1270 mm
Width of cover
371 mm
Roof cover /Tile
0.469 m2
Tiles /m2
2.13
Weight /Tile
3.01 kg
Maximum roof pitch
90 degrees
Minimum roof pitch
10 degrees

Technical documents

  • Bond
    • pdf
  • Bond Specification Sheet
    • pdf

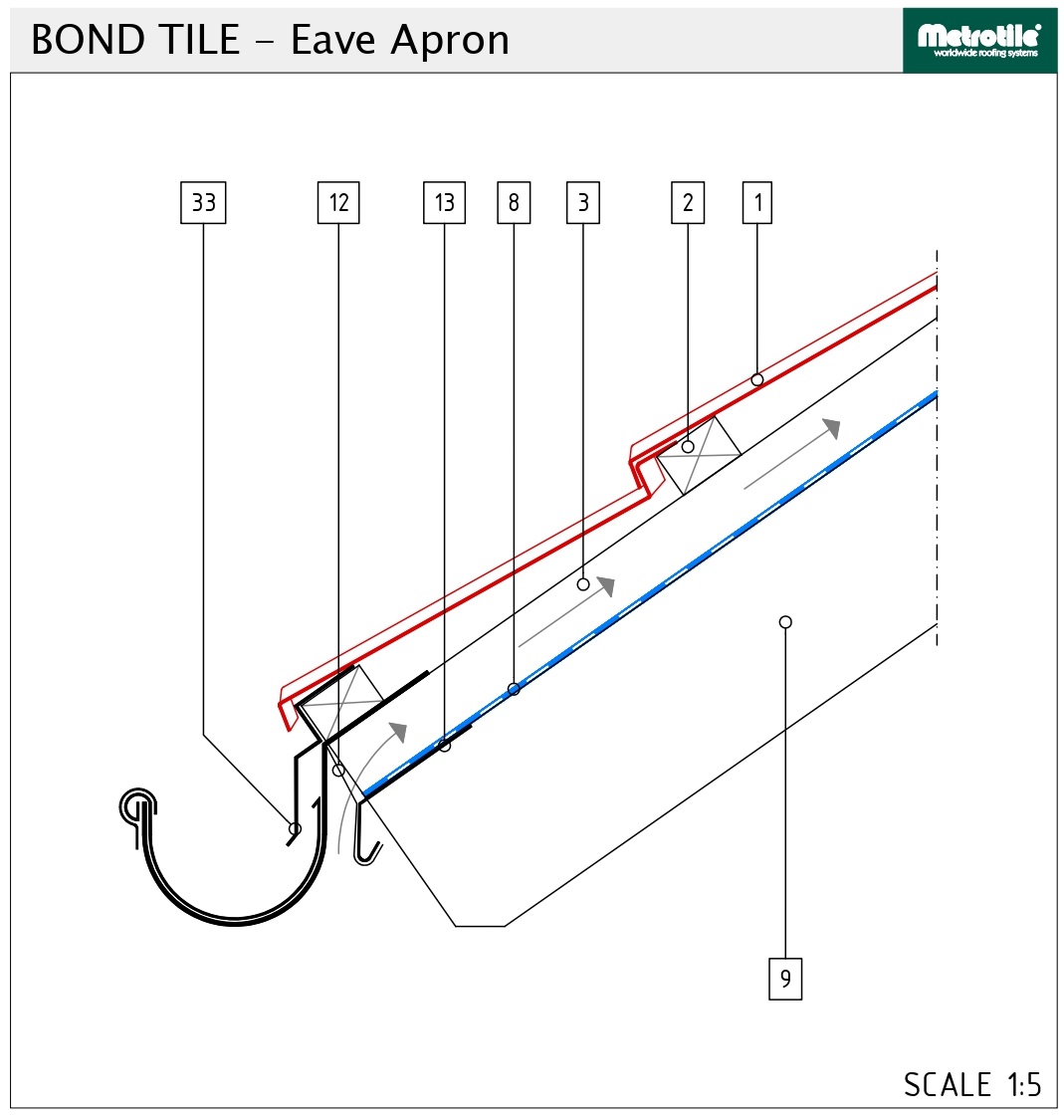

  • Bond Eave Apron

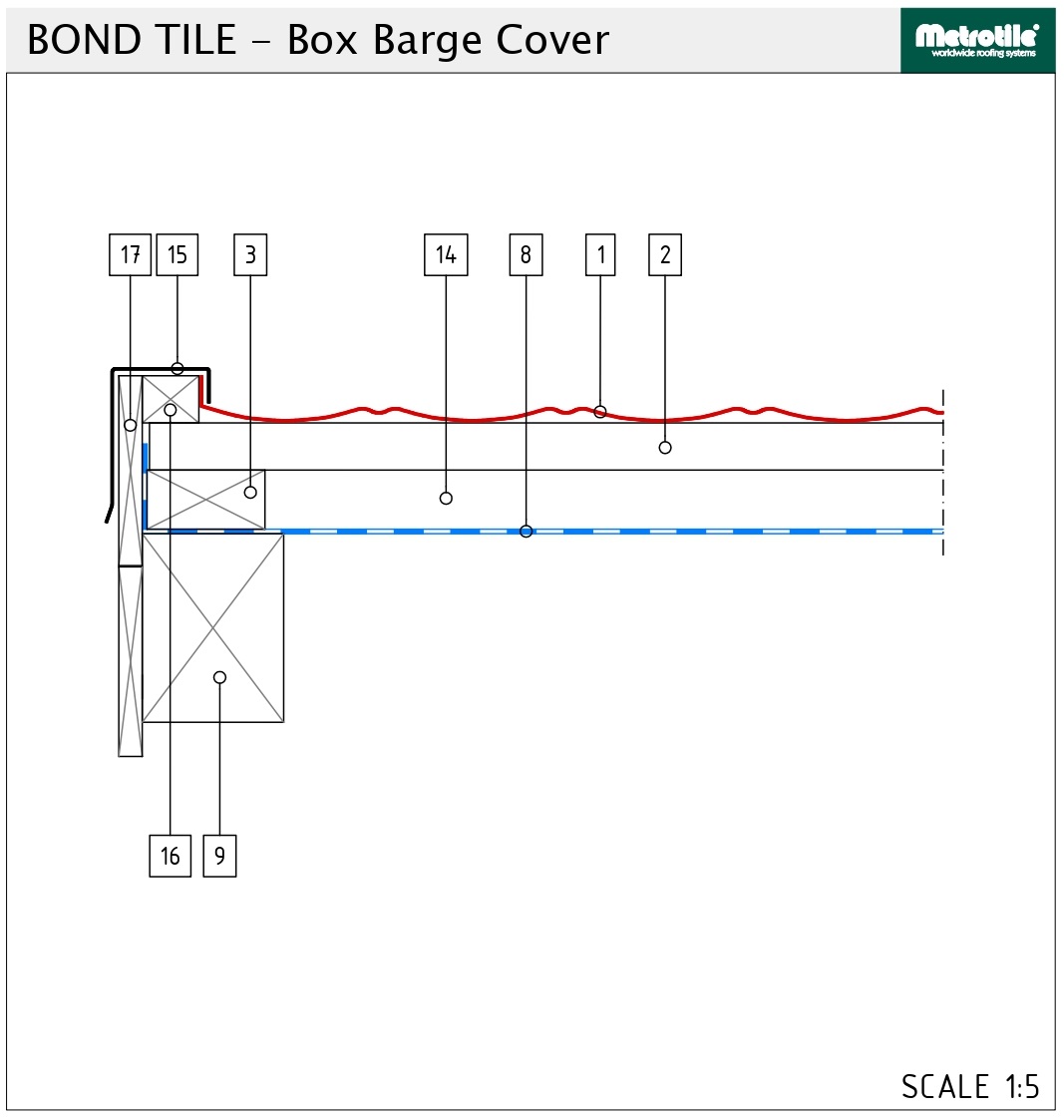

  • Bond Box Barge Cover

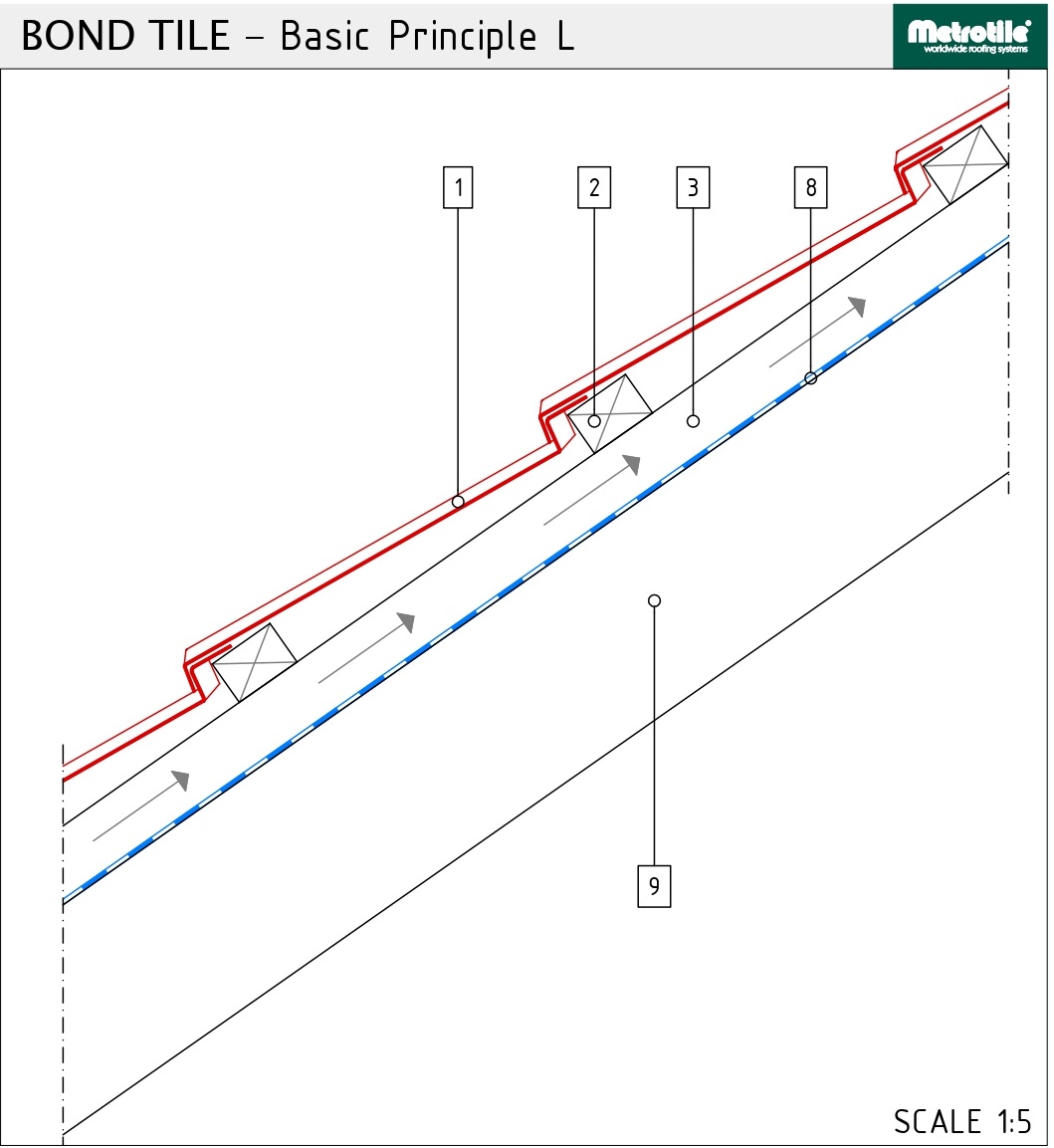

  • Bond Basic Principle L
  • View all CAD Drawings View all documents
